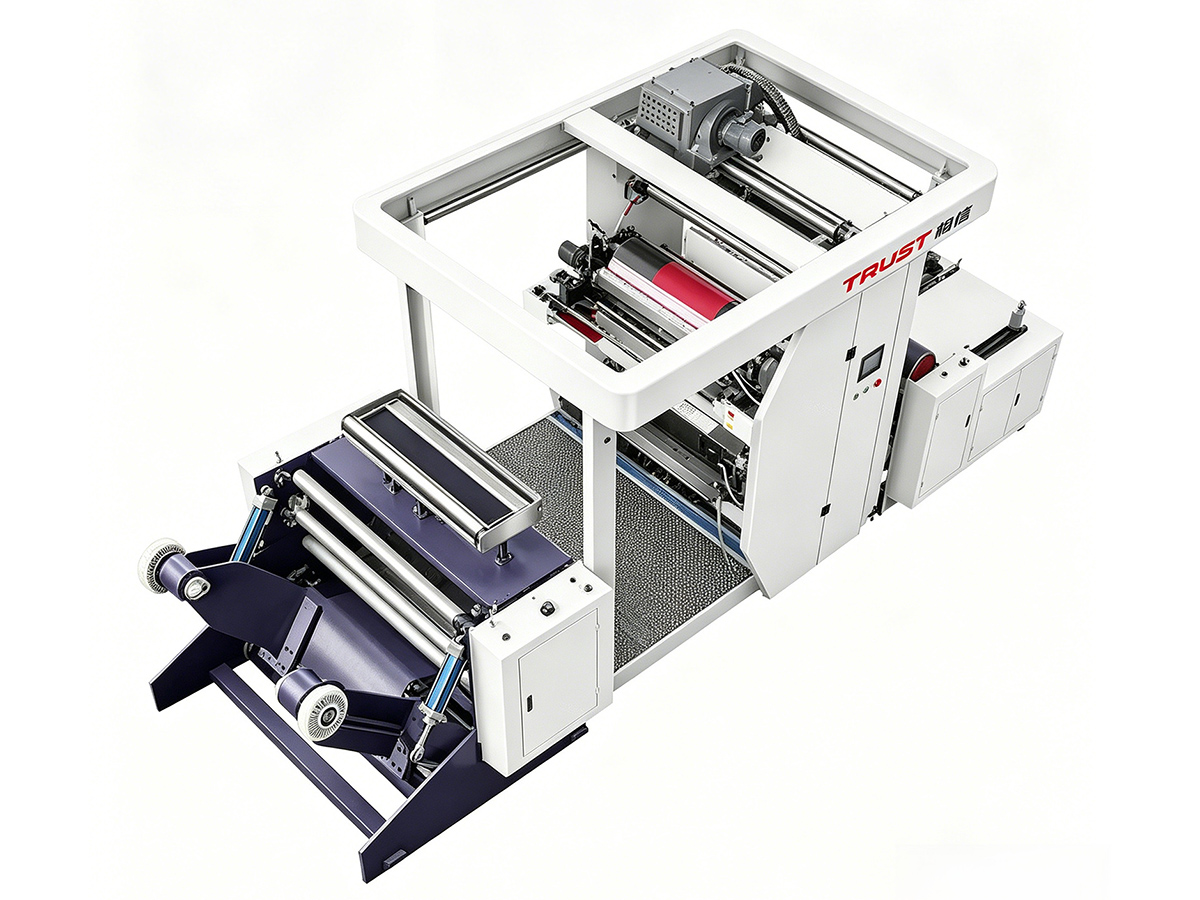

TF-FS02-1000 1200
- Stable quality: Implement full process quality monitoring, meticulous and comprehensive testing!
- Reasonable price: Effective internal cost control, reduced expenses, and benefits customers!
- Fast delivery: Advanced production line, sufficient stock, and shortened delivery time!
 |  |  |

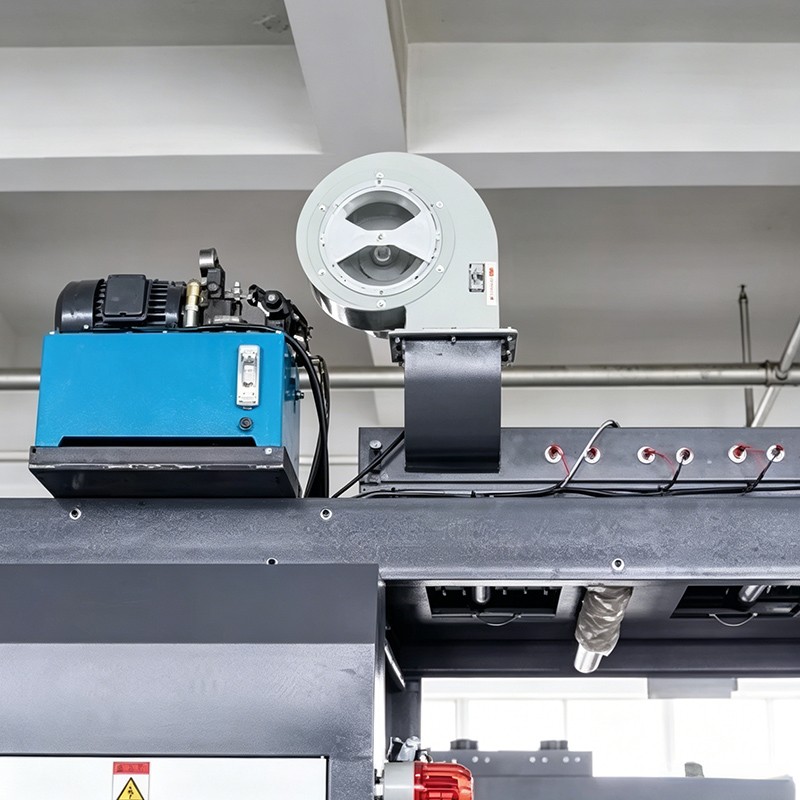

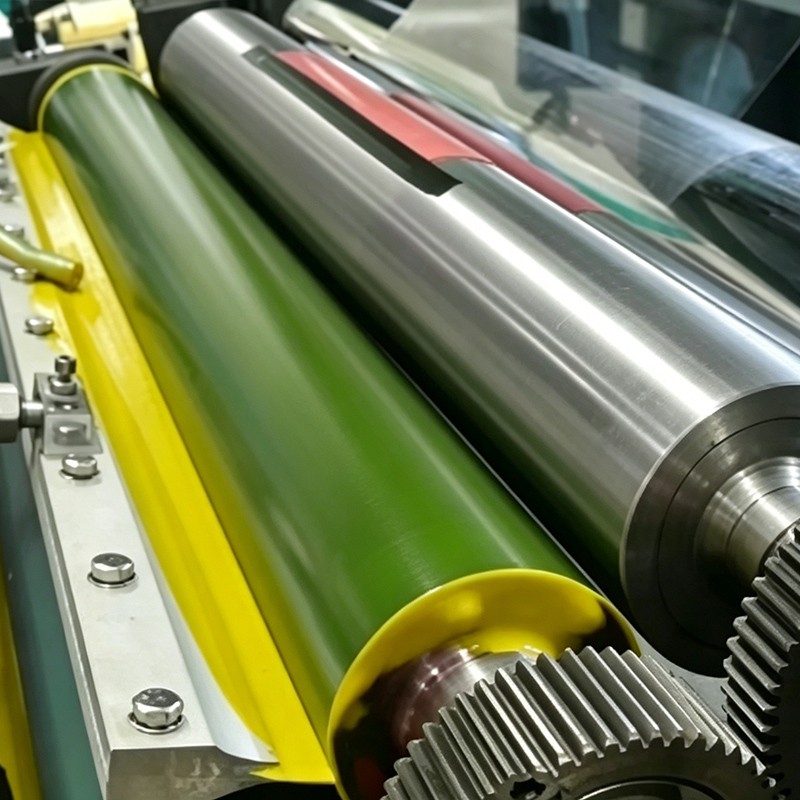

Web Guiding System | Ceramic Anilox Roller | Drying System |
 |  |  |

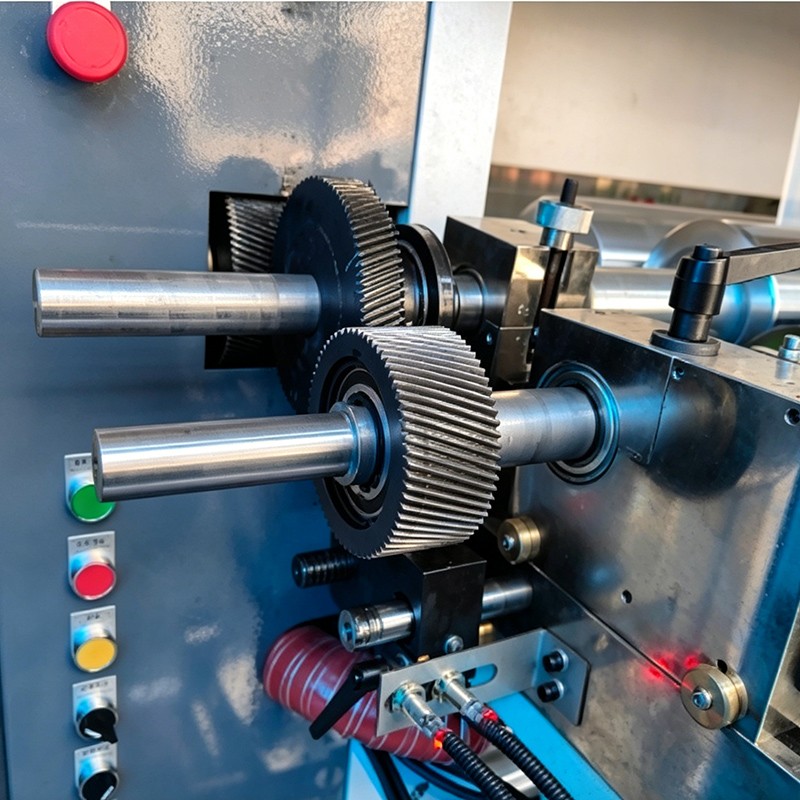

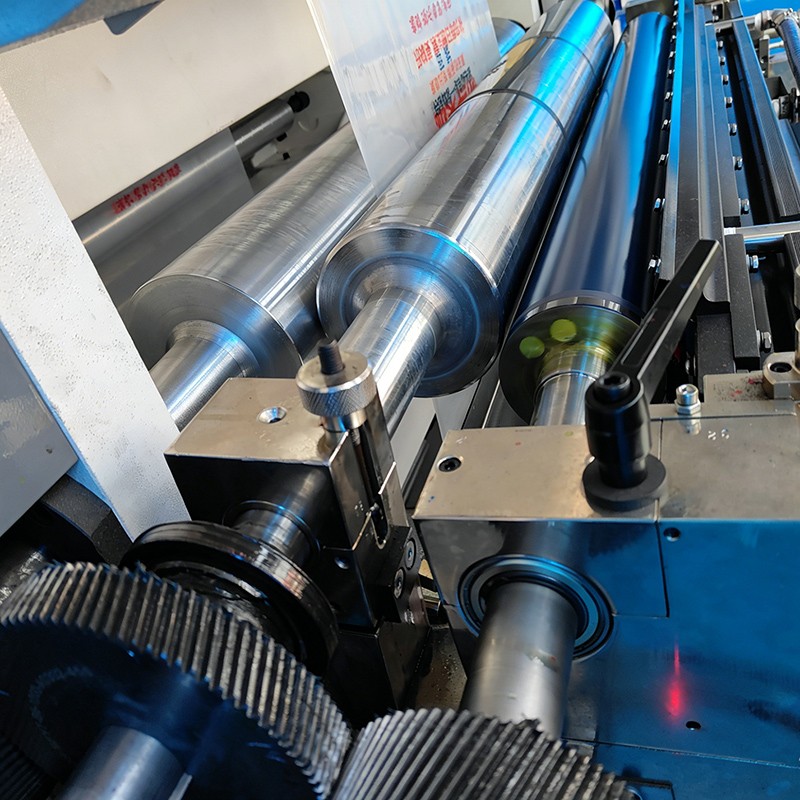

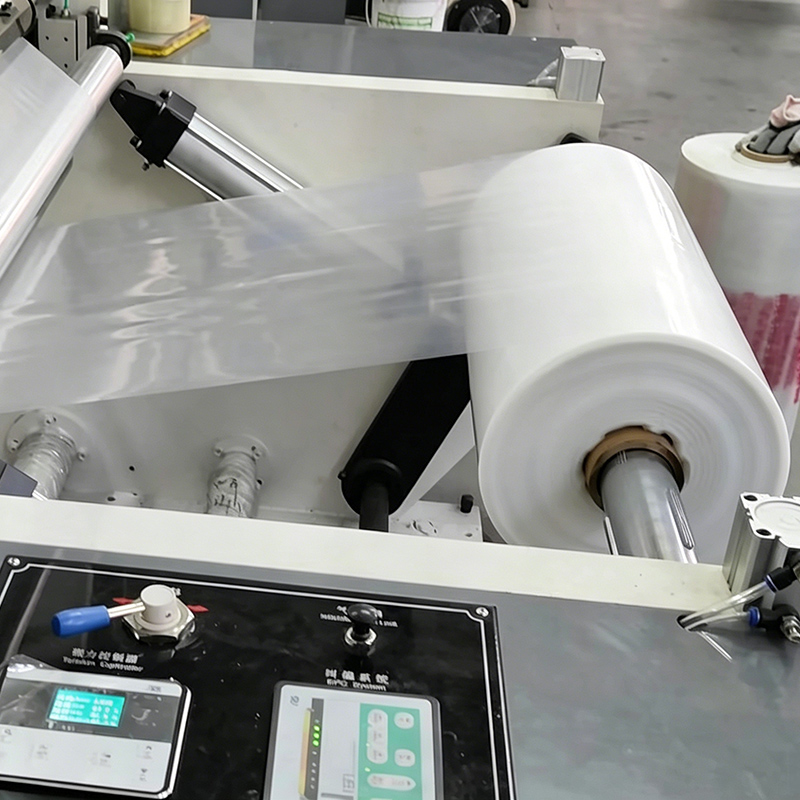

Printing Unit Gearbox | Printing Unit | Rewinding Unit |
Model No. | TF-FS02-1000 | TF-FS02-1200 |
Max. Web Width | 1000mm | 1200mm |
Max. Printing Width | 960mm | 1160mm |
Machine Speed | 120m/min | |
Printing Speed | 100m/min | |
Unwind / Rewind Diameter | φ1200mm / φ1500mm | |
Drive Type | Full Servo | |
Plate Thickness | Photopolymer Plates: 1.7mm / 1.14mm (optional) | |
Ink | Suitable for water-based ink and solvent-based ink | |
Repeat Length | 300mm-1000mm (special sizes customizable) | |
Substrate | Paper, paper cup, film, non-woven fabric and others | |
Power Supply | Voltage: 220-380V, 50Hz, 3PH or customer specified voltage | |
