TFCI-G04-1000 1200 Hot Sale Model

Stable quality: Implement full process quality monitoring, meticulous and comprehensive testing!
Reasonable price: Effective internal cost control, reduced expenses, and benefits customers!
Fast delivery: Advanced production line, sufficient stock, and shortened delivery time!

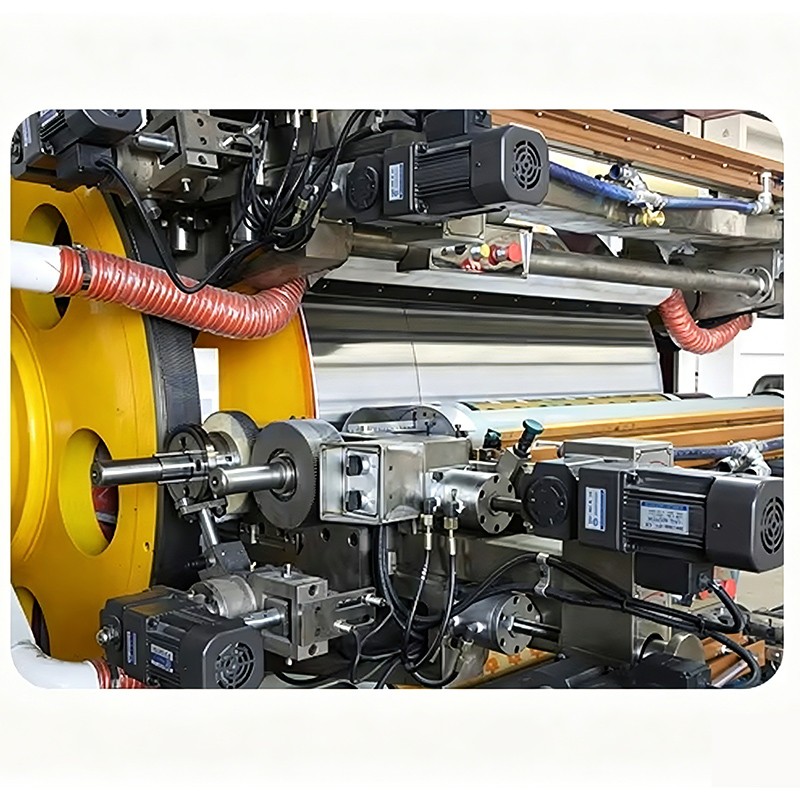

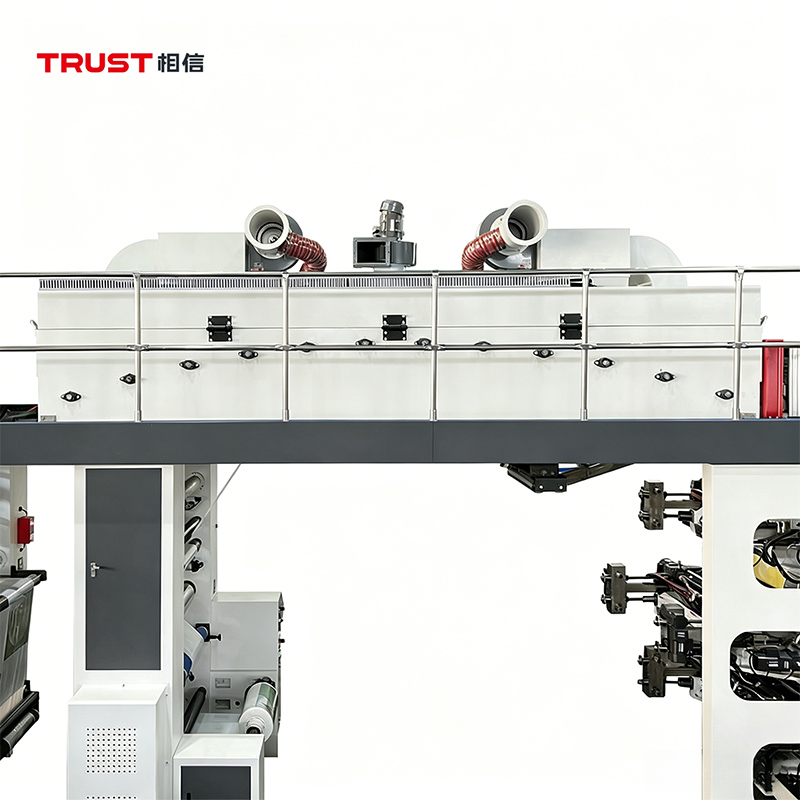

Center-Driven Rewinding System	Central Impression Cylinder Design	Electric Heating System

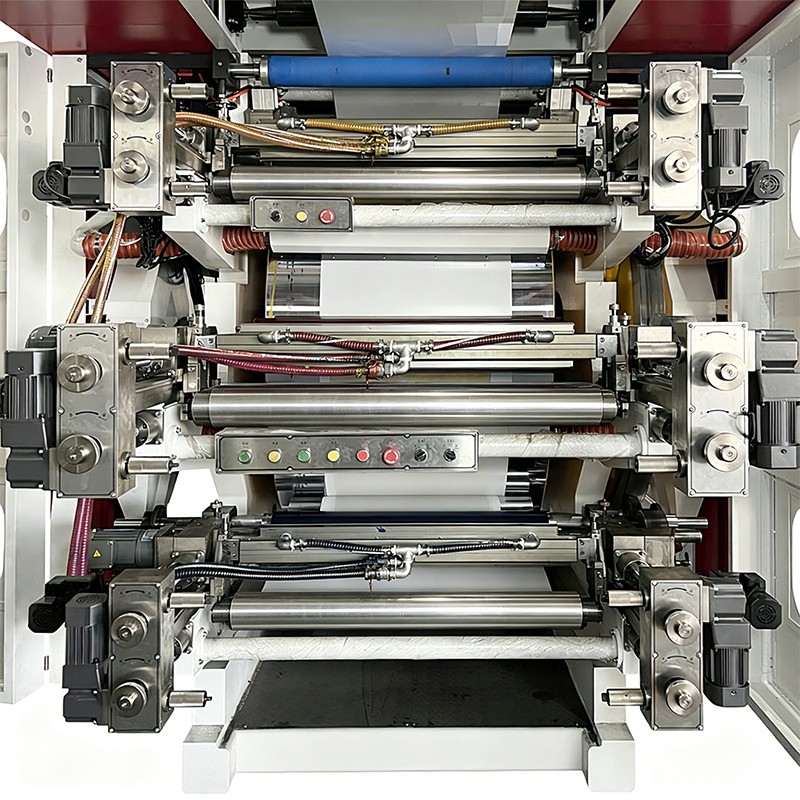

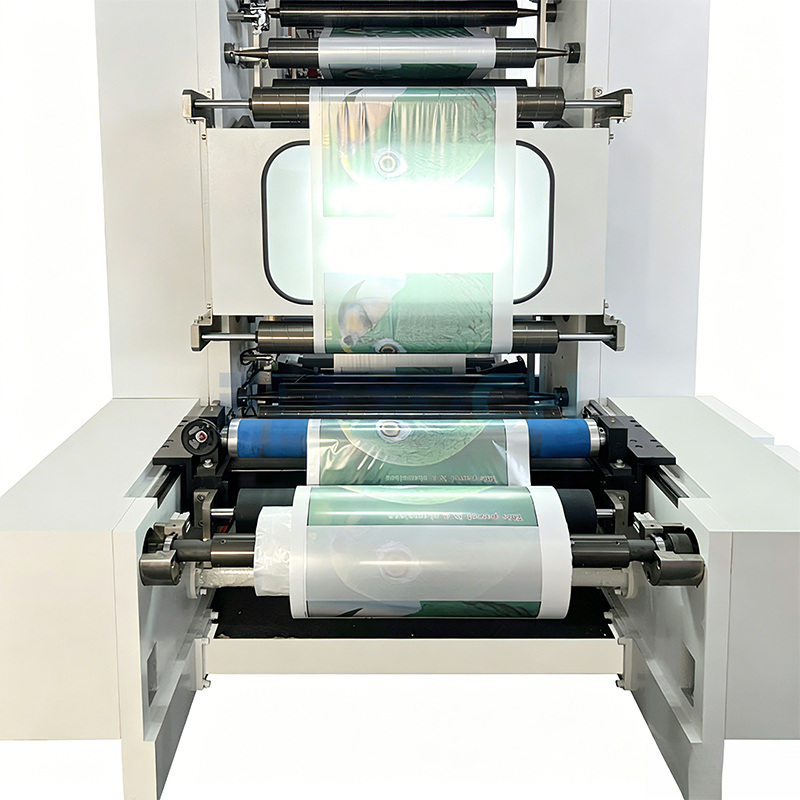

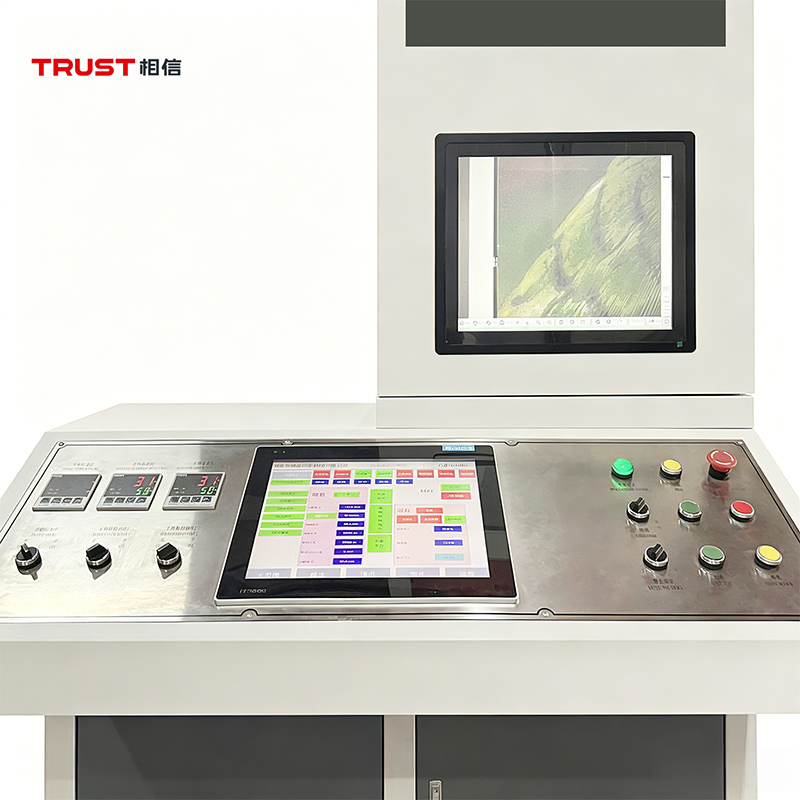

Printing Units	Video Inspection System	Center-Driven Unwinding System

Model No.	TFCI-G04-1000	TFCI-G04-1200
Max. Web Width	1000mm	1200mm
Max. Printing Width	960mm	1160mm
Machine Speed	350m/min
Printing Speed	300m/min
Unwind / Rewind Diameter	Φ800mm/φ1000mm / φ1200mm
Drive Type	Gear
Plate Thickness	Photopolymer Plates: 1.7mm / 1.14mm (optional)
Ink	Suitable for water-based ink and solvent-based ink
Repeat Length	300mm-1000mm (special sizes customizable)
Substrate	LDPE, LLDPE, HDPE, BOPP, CPP, PET, PA
Power Supply	Voltage: 220-380V, 50Hz, 3PH or customer specified voltage
