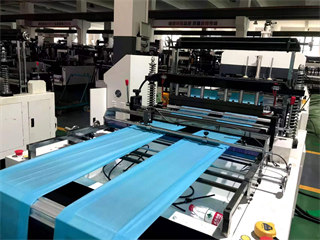

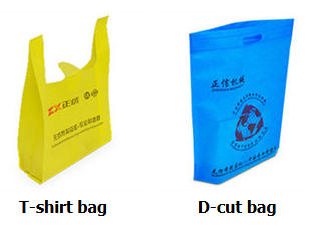

ZXL-A800 Double Line Non Woven T-shirt Bag Making Machine

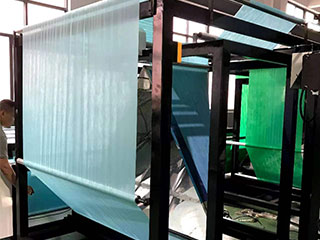

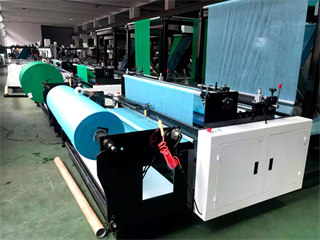

Part 1 Fabric roll Feeding part

Max width of unwinding 1600MM, max diameter of unwinding 1000MM Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control,folding sealing by ultrasonic welding, custom made round embossing mould.

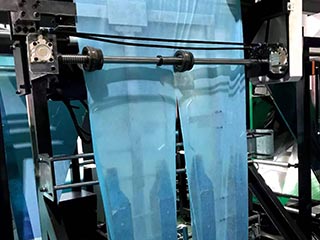

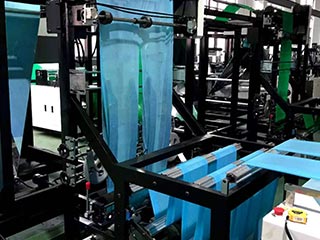

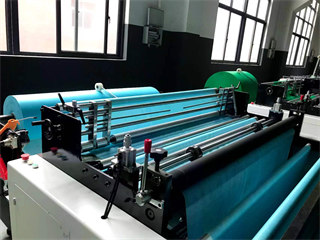

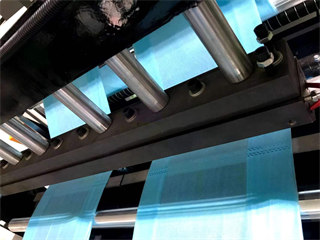

Part 2 Folding part

Non woven fabric cross folding device, easy adjustment, which make the bog mouth neat and tidy even without moving the whole machine.

Part 3 Bag bottom / side Gusset part

ouble Ultrsonic sealing ,bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic.

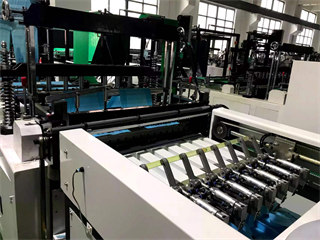

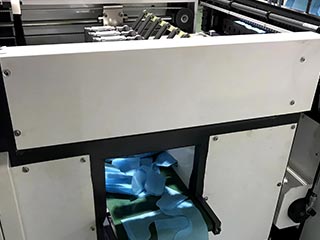

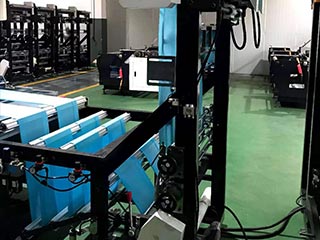

Part 4 Bag making part

The function of Bag side sealing , cutting, collection. adjustable photoelectric sensor for printing color mark tracking and Durable cold cutter. Adopts two Taiwan brand ultrasonic welding system(horn 350 MM) , different specs of ultrasonic can be used to meet different non woven fabric GSM.

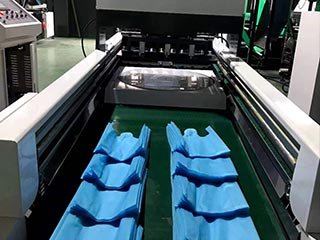

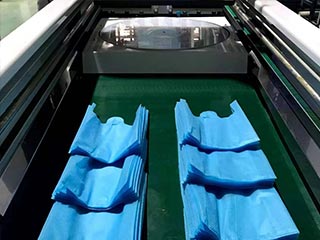

Part 5 Auto T-shirt bag Punching

Double line Online auto punching , Clamping bag, mould stamping into T-shirt bag.

Part 6 Operation Computer

Integrate all the electricity elements, adopts split-type design and PLC motion control as well as touch screen man-machine interface,easy operation and maintaining.
