ZXL-E700 Non woven Box Bag Making Machine with Online Handle Attaching （5 in 1）

Part 1 Fabric roll Feeding part

Max width of unwinding 1300MM, max diameter of unwinding 1000MM.

Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control,folding sealing by ultrasonic welding, custom made round embossing mould.

Part 2 Folding part

Non woven fabric cross folding device, easy adjustment, which make the bog mouth neat and tidy even without moving the whole machine.

Part 3 Bag bottom / side Gusset part

Feeding and computer length fixed by stepping motor, photocell eye tracking, bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic.

Part 4 Online handle sealing

Automatic integration ultrasonic handle sealing device, adopts PLC motion control and touch screen man-machine interface, easy operation, auto stop when no material. Handle feeding and length fix by stepping motor, high stability, handle attaching speed up to 75 pcs/min.

Part 5 Bag making part

The function of Bag side sealing , cutting, collection. adjustable photoelectric sensor for printing color mark tracking, and Durable cold cutter. Adopts two Taiwan brand ultrasonic welding system(horn 300 MM) , different specs of ultrasonic can be used to meet different non woven fabric GSM.

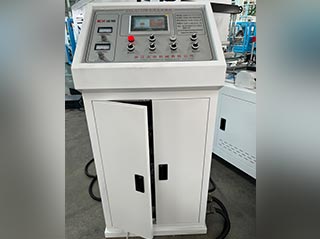

Part 6 Operation Compute

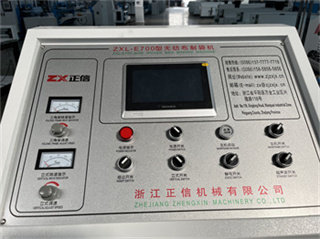

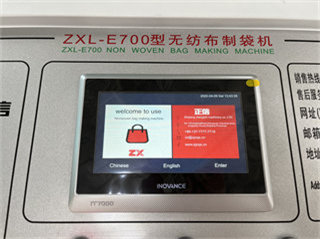

Integrate all the electricity elements, adopts split-type design and PLC motion control as well as touch screen man-machine interface, easy operation and maintaining.
