ZXU-A700 Single side soft handle sealing machine

Stable quality: Implement full process quality monitoring, meticulous and comprehensive testing!
Reasonable price: Effective internal cost control, reduced expenses, and benefits customers!
Fast delivery: Advanced production line, sufficient stock, and shortened delivery time!

ZXU-A700 Soft handle sealing machine

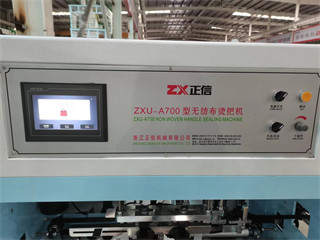

This new type automatic primary shaping handle ironing machine developed and improved by our company base on many customer’s feedback. We abandoned rotary cylinder and adopts unique structure, feeding material by steeping motor,precision transmission,combined with man-machine interface for parameters setting,which make the machine more intuitive and convenient.Add special shaping device,mainly used in the handle ironing of non woven bags.

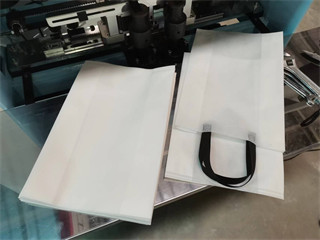

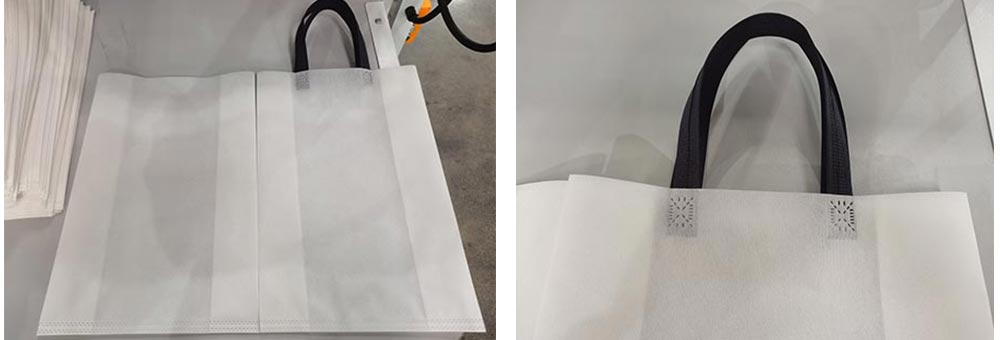

Finished Product Sample

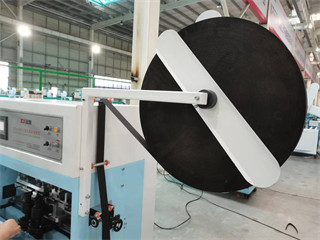

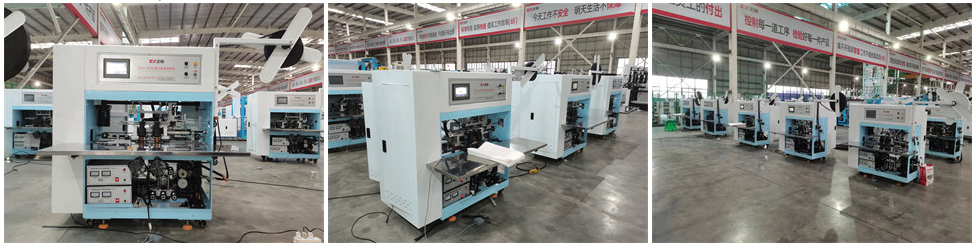

Machine in our factory:

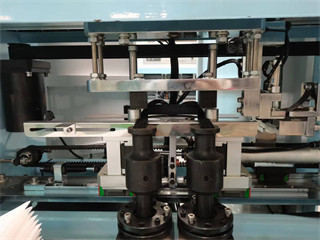

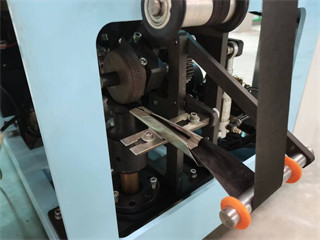

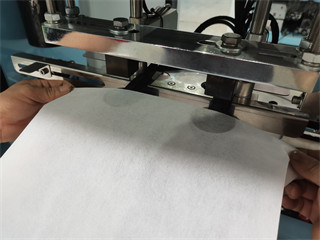

Handle sealing effect :

Main Technical Variables:

Type	ZXU-A700
Handle Loop Length	380-600mm
Bag Material Basis Weight	40-100g/㎡
Production Speed	5-20pcs/min
Power Supply	220V50HZ
Total Power	5KW
Overall Dimension	1300×800×1500mm
Weight	450KG
