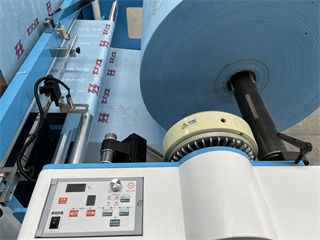

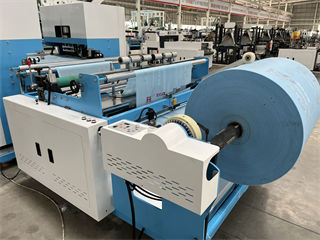

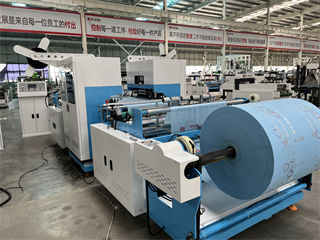

| Part 1 Fabric roll Feeding part | ||
 |  |  |

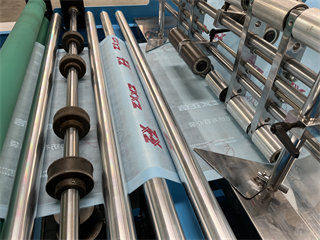

Equiped with Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control,folding sealing by ultrasonic welding, custom made round embossing mould.
| Part 2 Online double side soft handle sealing | ||
 |  |  |

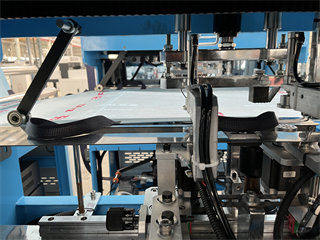

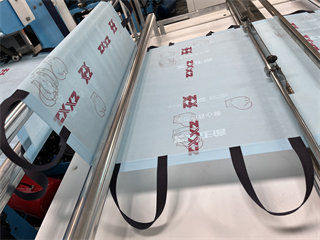

The function of welding the double handle loop on the material by 2 side handle sealing machine . it’s mainly used in the producing of manual non woven sealing bag , wine and git bag etc.

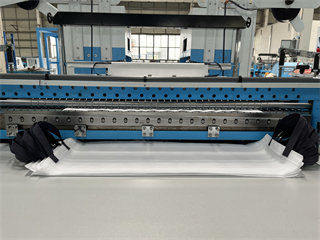

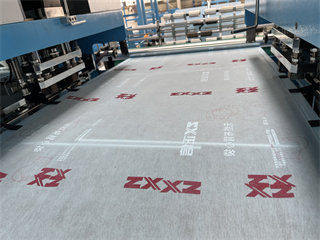

| Part 3 Finished product collecting part | ||
 |  |  |
Adopts quality cutting knife , wear-resistant, durable, product cutting is tidy and beautiful.

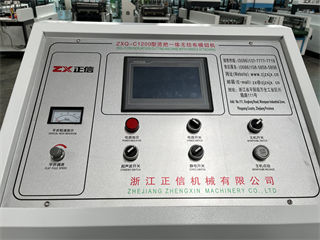

| Part 4 Operation Computer | ||
 |  |  |
Integrate all the electricity elements, adopts split-type design and PLC motion control as well as touch screen man-machine interface, easy operation and maintaining.
Machine Parameters:
| Model | ZXQ-C1200 |
| Fabric Roll Width | 500-1250mm |
| Production Speed | 40-100pcs/min |
| Feeding Length | 280-800mm |
| Cutting Width | 500-1200mm |
| Handle Material Thickness | 50-100g/㎡ |
| Handle L ength | 350-600mm |
| Material Thickness | 35-120g/㎡ |
| Voltage | 380V/220v |
| Total Power | 13kw |
| Overall Dimension | 6500x2300x1800mm |
| Weight | 2600kg |
