ZX-TR10 Paper Rope Machine

Stable quality: Implement full process quality monitoring, meticulous and comprehensive testing!
Reasonable price: Effective internal cost control, reduced expenses, and benefits customers!
Fast delivery: Advanced production line, sufficient stock, and shortened delivery time!

This machine mainly support high speed paper handle machine and fully paper bag machine.It can make paper rope in a high speed and provide paper rope for paper handle machine.The machine uses narrow web as raw material,through the high speed spinning of the axes of the machine,paper twisted into rope and kept in paper rope roll.Userscan adjust the diameter of the paper rope to meet different production needs.

Main Parts:

Electric motor

KUAYUE (China)

Mechanical details：

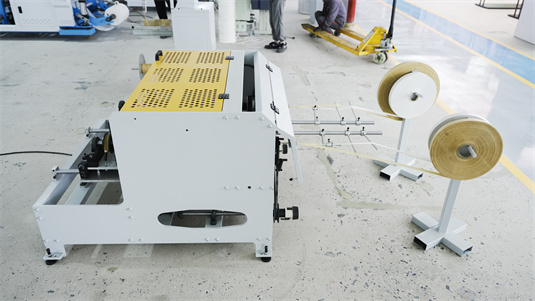

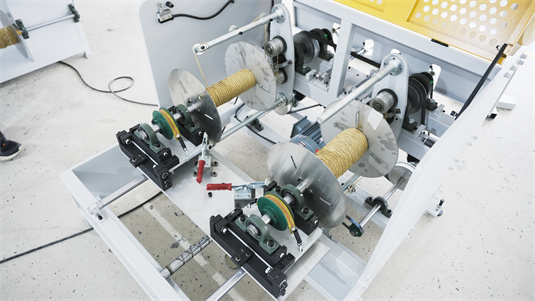

wisted rope making machine	Twisted rope making machine whole view

The main technical parameters:

Core Diameter of Raw Rope Roll	Φ76mm（3"）
Max.Paper Rope Diameter	300mm
Paper Roll Width	20-100mm
Paper Thickness	22-60g/m²
Paper Rope Diameter	Φ2.5-6mm
Max.Rope Roll Diameter	300mm
Max.paper Rope width	300mm
Production Speed	20-40m/min
Power Requirements	220V／380V
Total Power	1.5KW
Total Weight	Appr.750KG
Overall Dimension (L×W×H)	L1400×W1750×H1000mm
