ZX-RE10 Rewinding machine

Stable quality: Implement full process quality monitoring, meticulous and comprehensive testing!
Reasonable price: Effective internal cost control, reduced expenses, and benefits customers!
Fast delivery: Advanced production line, sufficient stock, and shortened delivery time!

This machine mainly support twisted paper rope machine.This machine takes the paper rope roll produced from twisted paper ropemachine as the raw material, releases the roll on one shaft and twines it on the other shaft on the machine.This machine can not onlyenlarge thediameter of the paper rope roll, but also eliminate rope knots in the raw paper rope roll,so that the application efficieency ofpaper rope roll can be greatly improved in further productions.

Main Parts:

Electric motor

KUAYUE (China)

Mechanical details：

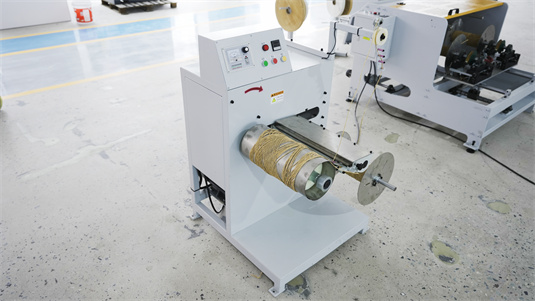

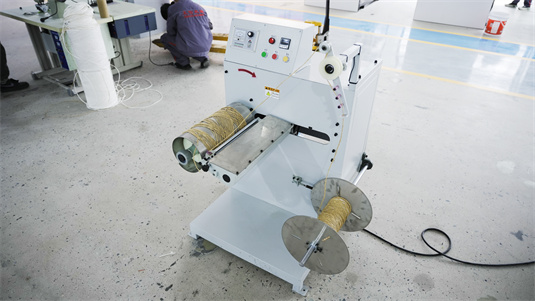

Rewinding machine	Rewinding machine

The main technical parameters:

Core Diameter of Raw Rope Roll	76mm
Core Diameter of Final Rope Roll	180mm
Final Rope Reel Diameter	400-600mm
Max Production Speed	80-150M/min
Power Requirements	380V
Total Power	2.2KW
Total Weight	Appr.150kg
Overall Dimension (L×W×H)	L1050×W800×H1200mm
